TWO-SIDE COATED MULTILAYER SBS (Solid Bleached Sulphate) BOARD/ GZ1/ GZ2

The board is triple coated on the top side, with one layer of pigment coating on the reverse side. It is made from quality long fibers of desirable diameter and length, with fine coating on the top, which lends it an excellent smoothness with low PPS value. The board is developed to benchmark with competing grades from America and Europe. With its best whiteness, the board is highly resistant to yellowing and ageing.

With even and consistent thickness, the board is ideally suited to offset print, meeting min dot specification while securing prime print quality in high-speed printing.


Product Detail

Product Tags

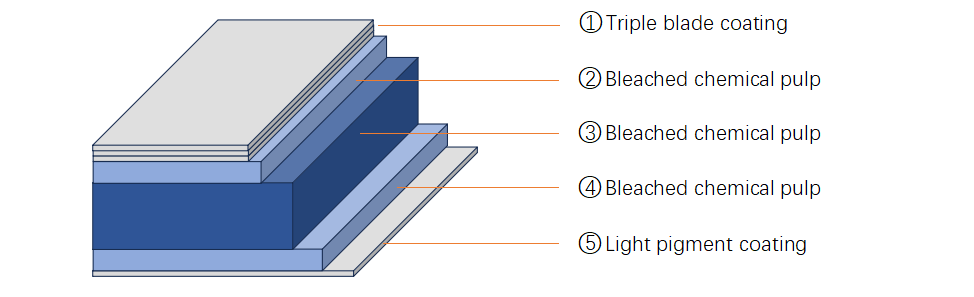

Product Structure

1713168995450

◎ The board is triple coated on the top side, with one layer of pigment coating on the reverse side. It is made from quality long fibers of desirable diameter and length, with fine coating on the top, which lends it an excellent smoothness with low PPS value. The board is developed to benchmark with competing grades from America and Europe. With its best whiteness, the board is highly resistant to yellowing and ageing.

◎ With even and consistent thickness, the board is ideally suited to offset print, meeting min dot specification while securing prime print quality in high-speed printing.

◎ The board is entirely based on premium primary wood pulp without any recycled fiber. It is food-safe and complies to high hygiene standards.

◎ It perform excellently in various finishing processes, including lamination, vanishing, die cutting, hot stamping and embossing.

◎ Available with FSC certification on request, the board is proved by annual inspection in compliance with various European and American packaging directives and regulations, including ROHS, REACH, FDA 21Ⅲ, and etc.

Printing and finishing techniques

The product can be used with different printing and finishing techniques such as offset, UV printing, foil stamping and embossing.

Product Overview

As one of the highest quality category of carton board, the board is entirely based on solid bleached sulphate pulp. There is usually one or more layers of mineral or synthetic pigment coating on the top (C1S) and one layer of coating on the back (C2S). With best whiteness on both its top and reverse sides, it provides stunning print quality and is ideal for graphical end uses and packaging applications. It works well in various finishing techniques, including die-cutting, creasing, hot-foil stamping and embossing. Other benefits of the board includes a high hygiene standard for odour and taste neutrality, which makes it a sustainable choice for products sensitive to odour and taste, such medicines, clothing, cigarettes and cosmetics.

Main End-uses

Commercial applications including greeting card, clothing tags, and packaging for pharmaceuticals, cigarettes and cosmetics.

Technical Data Sheet

Property Tolerance Unit Standards Value
Grammage ±3.0% g/㎡ ISO 536 170 190 230 250 300 350 400
Thickness ±15 um 1SO 534 205 240 295 340 410 485 555
Stiffness Taber15° CD ≥ mN.m 0.8 1.4 3 3.6 6.8 10 13 17
MD ≥ mN.m 1.5 2.5 5.4 6.5 12.2 18 23.4 32.3
CobbValue(60s) ≤ g/㎡ 1SO 535 Top: 45；Back:100
Brightness R457 ±3.0 % ISO 2470 Top:93.0；Back:91.0
PPS （10kg.H）top ≤ um ISO8791-4 1.5
Gloss(75°) ≥ % ISO 8254-1 45
Moisture (at Arrival) ±1.5 % 1S0 287 6.5
IGT Blister ≥ m/s ISO 3783 1.4
Scott Bond ≥ J/㎡ TAPPIT569 100
