Food-grade PE Coated Paperboard

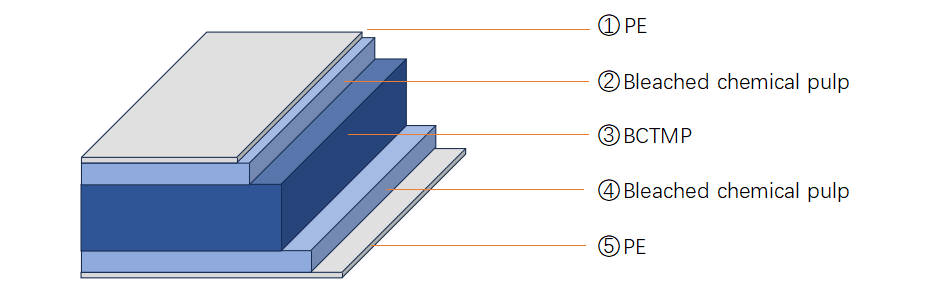

Product Structure
◎ Laminated on both top and reversed sides, it presents excellent resistance to oil or moisture, and is suitable for hot-melt lamination.
◎ It has very good taste and odour neutrality and shows optimized edge wicking of high temperature water. With superior surface smoothness and evenness, it delivers you the very best printability.
◎ Produced with pure virgin fiber and free from optical brightening agents, the board features excellent tensile strength and desirable whiteness.
◎ With ideal stiffness and folding strength, the board stands out with superior convertability and formability, and is suitable for different converting and furnishing techniques such as lamination, die cut, ultrasonic laminating and hot-melt lamination.
◎ Available with FSC certification on request, the board is proved by annual inspection in compliance with various European and American packaging directives and regulations, including ROHS, REACH, FDA 21Ⅲ, and etc.
Printing Techniques
The product can be used with different printing techniques such as gravure, offset, UV and flexo.
Product Category
PE Coated Paperboard, with one PE coating or two PE coatings
Main End-uses
The board is ideal for a variety of folding cartons for pharmaceuticals, cosmetics, and also performs well in food service applications, such as papercup for hot drink or cold drink, packaging of ice cream, beverage or dairy products.
Technical Data Sheet
Technical Standard for PE Coated LPB
1.This technical standard applies to the double-sided PE coated paperboard provided by the company.
2.The technical indicators of paperboard comply with the provisions in the following table, and provisions in the order contract.
| PROPERTY | UNIT | TOLERANCE | VALUE | |||
| BASEPAPER WEIGHT | g/m2 | ±10% | 260 | 290 | 320 | 340 |
| FILM WT GLOSS | g/m2 | ±2 | 14 | 16 | 16 | 20 |
| FILM WT MATTE | g/m2 | ±2 | 24 | 26 | 26 | 35 |
| UNCOATED CALIPER | mm | ±0.015 | 0.375 | 0.41 | 0.45 | 0.49 |
| COATED CALIPER | mm | ±4% | 0.4 | 0.45 | 0.48 | 0.54 |
| MOISTURE UNCOATED | % | ±1 | 7 | 7 | 7 | 7.5 |
| BRIGHTNESS | % | -- | PS:81.0±3.0 | |||
| STIFFNESS MD（Taber 15°） | mN.m | ≥ | 13.8 | 17.4 | 22.5 | 27 |
| STIFFNESS CD（Taber 15°） | mN.m | ≥ | 5.5 | 7 | 9 | 10.5 |
| SCOTT BOND AFTER COATING | N/15mm | ≥ | 1 | 1 | 1 | 1 |
| PULLING STRENGTH(MD) | N/15mm | ≥ | 200 | 200 | 220 | 220 |
| PULLING STRENGTH (CD) | N/15mm | ≥ | 100 | 100 | 120 | 120 |
| PPS10 | um | ≤ | 6.5 | |||
| SCOTT BOND | J/m2 | ±60 | 230 | |||
| FOLDING STRENGTH (CD) | Times | ≥ | 200 | 200 | 200 | 200 |
| EDGE WICK (1% lactic acid, 60 minutes) | kg/m2 | ≤ | 0.8 | |||
| Spot 0.3 - 1.5mm2 | n/m2 | ≤ | 10 | |||
| ≥ 1.5m2 | n/m2 | NONE | ||||
| PIN HOLE | n/m2 | NONE | ||||
| DYNE WT GLOSS | ≥38 | |||||
1.The microbial index of the contact surface of cardboard material and food shall comply with the provisions in the following table.
2.The size tolerance of the PE coated board is (0 ~ +2)mm.
3.The inner and outer surface of the cardboard is smooth and even, without any folds, holes, cracking or blistering. No foreign particle or odor is presented.
The cardboard meets the requirements related to China’s national food safety standards.
| ITEMS | STANDARD TARGET |
| MIBI（n/cm2） | ≤1 |
| COLI GRUP | NONE |
| PATHOGENIC BACTERIA (REFERS TO INTESTINAL PATHOGENIC BACTERIA, PATHOGENIC COCCUS) | NONE |
| MYCETE | NONE |
