High Bulk Folding Boxboard/ Multi-Ply Gc1/ Multi-Ply Gc2 available in rolls or sheets

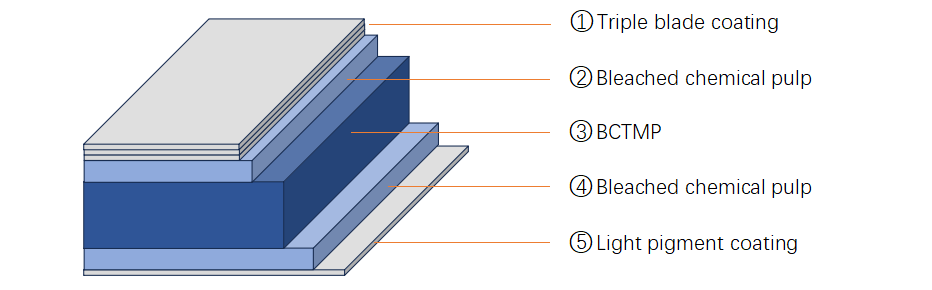

Product Structure
◎ Triple coated on the top side and surface-sized with starch on the reverse side, the board has excellent stiffness, offering optimal whiteness on the print side and appealing visual appearance on the back side.
◎ With outstanding bulk attributes and optimized smoothness, it is ideal for offset printing, supports min dot requirement, and delivers fantastic print result at high print speeds.
◎ The board is made of premium high-bulk virgin pulp without any secondary fibers.
◎ It performs well in various finishing processes, such as lamination, vanishing, die cutting, hot stamping and embossing.
◎ Available with FSC or PEFC certifications on request, the board is proved by annual inspection in compliance with various European and American packaging directives and regulations, including ROHS, REACH, FDA 21Ⅲ, and etc.
◎ Suit for offset、UV printing, hot stamping, etc
Printing and finishing techniques
The product can be used with different printing and finishing techniques such as offset, UV printing, foil stamping and embossing.
Product Description
The HIGH BULK FBB has been specially designed as a cost-effective solution for folding boxboard market. It offers impeccable runnability in printing and converting processes, providing the print results required for customer experience. Thanks to its ideal stiffness-to-weight ratio, it beats other regular board with a higher yield at a lighter weight. It is a brilliant choice for customer to communicate quality at lower weights and lower costs.
The board features a thickness that outperforms other paper board of the same basic weight. With its delicate fiber texture, it is often used as an excellent substitute for duplex board (grey-back) or white manila board (grey-back).
Lightweight without compromising on strength, the board helps to reduce pulp consumption and brings additional sustainability credentials by minimizing transportation cost.
Main End-uses
The HIGH BULK FBB is versatile in many applications. Its low weight series is typically used for application such greeting card, folding box, cosmetic package and digital product.
The medium weight series is ideal in premium folding cartons for cosmetics, daily necessities, digital products, and etc.
It is also a great packaging material of dedicate carrier packs for fruit.
Technical Data Sheet
| Property | Tolerance | Unit | Standards | Value | ||||||||
| Grammage | ±3.0% | g/㎡ | ISO 536 | 210 | 230 | 250 | 280 | 300 | 330 | 350 | 370 | |
| Thickness | ±15 | um | 1SO 534 | 325 | 355 | 400 | 450 | 500 | 550 | 585 | 600 | |
| Stiffness Taber15° | CD | ≥ | mN.m | 3.9 | 3.9 | 4.9 | 6 | 9 | 11.8 | 14.8 | 17 | 18.8 |
| MD | ≥ | mN.m | 7.8 | 7.8 | 9.8 | 12 | 17.1 | 22.4 | 28 | 32.3 | 35.7 | |
| CobbValue(60s) | ≤ | g/㎡ | 1SO 535 | Top: 45；Back:50 | ||||||||
| Brightness R457 | ±2.0 | % | ISO 2470 | Top:91.0；Back:90.0 | ||||||||
| PPS （10kg.H）top | ≤ | um | ISO8791-4 | 1.5 | ||||||||
| Gloss(75°) | ≥ | % | ISO 8254-1 | 40 | ||||||||
| Moisture (at Arrival) | ±1.5 | % | 1S0 287 | 7.5 | ||||||||
| IGT Blister | ≥ | m/s | ISO 3783 | 1.2 | ||||||||
| Scott Bond | ≥ | J/㎡ | TAPPIT569 | 120 | ||||||||
